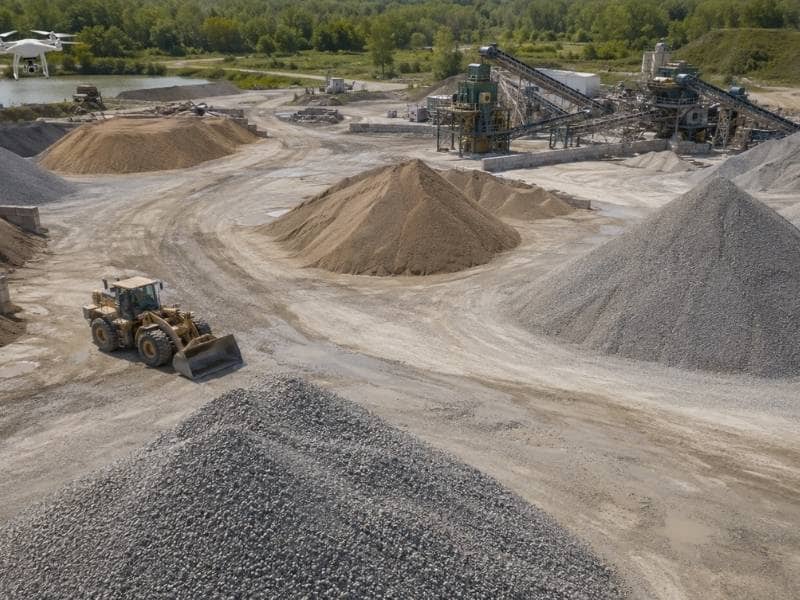

Photogrammetric mapping measures stockpile volumes at busy material yards using overlapping aerial photos. For an operation tracking inventory, this method turns a pile of gravel into an exact volume without shutting the site down. A crew captures the photos, ties them to ground control, and builds a 3D model of each pile. The result gives a yard reliable numbers for reporting and planning.

Planning the Photos Around Yard Operations

The mapping starts by fitting the flight to a working yard. Equipment movement, traffic, material handling, dust, and shadows all affect when a crew can collect clean data. Bad timing produces photos that hide part of a pile behind a truck or a cloud of dust. Planning around the operation keeps the data usable and the site safe.

An active yard never fully stops, so the flight has to adapt. A crew watches for a window when the piles sit exposed and the traffic thins out. That patience pays off in a cleaner model.

Tying the Photos to Real Coordinates

Accurate volumes depend on accurate scale and position. Ground control points, targets, and field measurements connect the aerial photos to reliable site coordinates. Without that control, a model might look right yet report the wrong numbers. The control ties the photos to the ground so the volumes hold up.

This link is what separates a survey-grade result from a rough guess. Photos alone can drift. Tied to measured control, they produce numbers a yard can defend to an auditor.

Building a 3D Model From Overlapping Photos

Repeated photo coverage creates the surface model. When the photos overlap enough, software matches common points across them and rebuilds the visible outside of each pile. That surface becomes the base for every volume calculation. The steadier the overlap, the more complete the model.

The model captures only what the camera sees, which is the outer skin of each pile. That limit shapes how the crew flies and how they read the results. Understanding it keeps expectations honest.

Calculating Volumes Against a Base

Turning a surface into a volume takes a good base. The crew picks a reference surface, separates piles that touch, sets each pile’s limits, and applies the same processing every time. Those choices decide whether one pile’s volume bleeds into the next. Careful setup produces numbers a yard can trust month after month.

Piles that touch cause most of the trouble. When two materials meet, the crew has to draw a clear line between them. Consistent methods keep that line, and the resulting volumes, reliable.

Making the Comparisons Repeatable

Standard capture makes tracking possible over time. Consistent flight dates, naming, surface boundaries, and report formats let a yard compare one period to the next. Without that consistency, a change in method can look like a change in inventory. A repeatable process turns single measurements into a real trend.

Frequently Asked Questions

Can photogrammetry measure material hidden under equipment or conveyors?

No. The model captures visible surfaces, so anything blocked by equipment or a conveyor won’t be measured. Reducing those blockages, or planning the flight around them, improves the result.

How often should stockpiles be remapped?

The schedule depends on how fast material turns over, the reporting cycle, and the accuracy the operation needs. A yard with quick turnover and monthly reporting maps more often than a slow one.

Does every stockpile need ground control around it?

Not always. The control plan depends on the platform, the site, the accuracy required, and whether reliable site control already exists. An established network can sometimes serve several piles.
